C++ 固件更新示例代碼-Firmware Update
# 固件升級示例-FirmwareUpgrade
功能描述：本示例演示如何用固件文件給設備升級。
> 本示例基于C++ Low Level API進行演示
在main函數接口通過命令參數獲取固件文件
// checkFirmwareFilePath()函數用于檢查文件是否存在，實際代碼中最好檢查后綴是否為bin或者img, 以及固件文件是否與目標設備相匹配
std::string checkFirmwareFilePath(int argc, char **argv) {
if(argc < 2) {
std::cout << "Please input firmware path." << std::endl;
return "";
}
std::string filePath = std::string(*(argv + 1));
std::ifstream fs(filePath);
if(!fs.is_open()) {
std::cout << "Open Firmware file failed. filePath: " << filePath << std::endl;
return "";
}
fs.close();
return filePath;
}
int main(int argc, char **argv) try {
std::string firmwareFilePath = checkFirmwareFilePath(argc, argv);
if(firmwareFilePath.empty()) {
std::cout << "command: " << std::endl << "$ ./FirmwareUpgrade[.exe] firmwareFile.bin" << std::endl;
return 0;
}
// 接下來的業務代碼
return 0;
}
catch(ob::Error &e) {
// 處理OrbbecSDK接口調用異常，示例為了簡潔連續幾個接口一起try-catch，實際業務中推薦單獨一個接口一個try-catch
std::cerr << "function:" << e.getName() << "\nargs:" << e.getArgs() << "\nmessage:" << e.getMessage() << "\ntype:" << e.getExceptionType() << std::endl;
exit(EXIT_FAILURE);
}
創建ob::Context并通過ob::Context獲取設備，本示例假設運行FirmwareUpgrade[.exe]之前上位機（Windows、Ubuntu、Android平臺）已經插入設備。ob::DeviceChangedCallback用于固件升級后監聽device重啟后獲取被升級設備的業務處理
// 構建ob::Context對象
ob::Context ctx;
// 設置設備變化監聽器，device_changed_callback是管理device聲明周期的關鍵函數，開發者必須關注該回調
ctx.setDeviceChangedCallback([](std::shared_ptr<ob::DeviceList> removedList, std::shared_ptr<ob::DeviceList> addedList) {
if(isWaitRebootComplete_) {
if(addedList && addedList->deviceCount() > 0) {
auto device = addedList->getDevice(0);
if(isDeviceRemoved_ && deviceSN_ == std::string(device->getDeviceInfo()->serialNumber())) {
rebootedDevice_ = device;
isWaitRebootComplete_ = false;
std::unique_lock<std::mutex> lk(waitRebootMutex_);
waitRebootCondition_.notify_all();
}
}
if(removedList && removedList->deviceCount() > 0) {
if(deviceUid_ == std::string(removedList->uid(0))) {
isDeviceRemoved_ = true;
}
}
} // if isWaitRebootComplete_
});
// 查詢當前已經接入的設備
auto devList = ctx.queryDeviceList();
// 從ob::DeviceList中獲取當前接入設備的數量
if(devList->deviceCount() == 0) {
// 固件升級示例默認設備已經接入到上位機（Windows、Ubuntu、Android平臺）
std::cerr << "Device not found!" << std::endl;
return -1;
}
// 獲取第一個設備，index=0
auto dev = devList->getDevice(0);
// 打印設備信息
dumpDeviceInfo(dev);
獲取設備當前的固件版本信息
// 打印設備名稱，SN，VID，PID以及固件版本
void dumpDeviceInfo(std::shared_ptr<ob::Device> device) {
// 獲取ob::DeviceInfo對象，通過ob::DeviceInfo可以獲取目標設備的基本信息
auto devInfo = device->getDeviceInfo();
// 設備名稱
std::cout << "Device name: " << devInfo->name() << std::endl;
// 設備VID，PID，UID
std::cout << "Device pid: " << devInfo->pid() << " vid: " << devInfo->vid() << " uid: " << devInfo->uid() << std::endl;
// 設備當前的固件版本號
auto fwVer = devInfo->firmwareVersion();
std::cout << "Firmware version: " << fwVer << std::endl;
// 設備SN
auto sn = devInfo->serialNumber();
std::cout << "Serial number: " << sn << std::endl;
// devInfo資源會自動釋放
給目標設備升級固件
a. 實現C API的固件升級回調接口；
b. 調用固件升級接口進行升級；
// 對目標設備進行固件升級
bool upgradeFirmware(std::shared_ptr<ob::Device> device, std::string firmwarePath) {
auto index = firmwarePath.find_last_of(".img");
bool isImgFile = index != std::string::npos;
index = firmwarePath.find_last_of(".bin");
bool isBinFile = index != std::string::npos;
if(!(isImgFile || isBinFile)) {
// 固件升級文件一般為bin或者img，實際業務中最好通過文件名稱、文件MD5等信息做防呆
std::cout << "Upgrade Fimware failed. invalid firmware file: " << firmwarePath << std::endl;
return false;
}
bool isUpgradeSuccess = false;
try {
// 調用固件升級接口進行升級；
device->deviceUpgrade(
firmwarePath.c_str(),
[=, &isUpgradeSuccess](OBUpgradeState state, const char *message, uint8_t percent) {
if(state == STAT_START) {
std::cout << "Upgrade Firmware start" << std::endl;
}
else if(state == STAT_FILE_TRANSFER) {
std::cout << "Upgrade Firmware file transfer, percent: " << (uint32_t)percent << std::endl;
}
else if(state == STAT_IN_PROGRESS) {
std::cout << "Upgrade Firmware in progress, percent: " << (uint32_t)percent << std::endl;
}
else if(state == STAT_DONE) {
// 固件升級成功
std::cout << "Upgrade Firmware done, percent: " << (uint32_t)percent << std::endl;
isUpgradeSuccess = true;
}
else if(state == STAT_VERIFY_IMAGE) {
std::cout << "Upgrade Firmware verify image" << std::endl;
}
else {
// 固件升級失敗
std::string errMsg = (nullptr != message ? std::string(message) : "");
std::cout << "Upgrade Firmware failed. state: " << std::to_string(state) << ", errMsg: " << errMsg << ", percent: " << (uint32_t)percent
<< std::endl;
}
},
false);
}
catch(ob::Error &e) {
std::cerr << "Upgrade Firmware ob error. function:" << e.getName() << "\nargs:" << e.getArgs() << "\nmessage:" << e.getMessage()
<< "\ntype:" << e.getExceptionType() << std::endl;
}
catch(std::exception &e) {
if(e.what()) {
std::cout << "Upgrade Firmware Exception. what: " << std::string(e.what()) << std::endl;
}
}
return isUpgradeSuccess;
}
固件升級成功后，需要重啟設備。重啟設備有兩種方式，一種是拔插設備（或者操作系統重啟），另一種是調用OrbbecSDK的reboot接口。等設備上線后，通過本示例的dump_device_info()函數可以查詢當前設備固件版本信息
以下示例演示通過固件reboot接口重啟設備
// 重啟設備
std::cout << "Reboot device" << std::endl;
isDeviceRemoved_ = false;
isWaitRebootComplete_ = true;
dev->reboot();
// 釋放資源，設備重啟后ob::Device對象就不能用了
dev = nullptr;
程序正常退出之后資源將會自動釋放

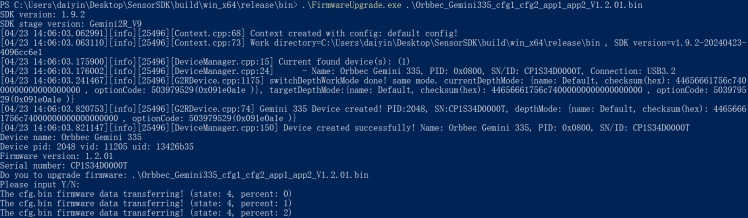

預期輸出：
